6090 TIMBER ENGRAVING MACHINE

Applicable industries:

Three-dimensional handicraft industry, woodworking, advertisingindustry,batch processing of sheet metal products industry

Applicable materials:

Plexiglass, PVD board, KT board, wood board, synthetic boardacrylic, metal and other materials

Send inquiry

High-efficiency machining with high-power spindle point machine.

Compatible with Beijing Jingdiao/Wentai/CAD/Type:3 Artcamand other software

Get more details

The bed and gantry are welded with steel structure seamlessly,and the whole machine is treated with high temperature agingtreatment, which has strong rigidity and no deformation,

The Z-axis rear-mounted triangular structure installation technology of the engraving machine and the triangular structurelavout of the guide rail greatly reduce the resonance generatedby the Z-axis, improve the service life of the guide rail slider, andimprove the engraving accuracy.

Get more details

Working desk size	600mm 900mm 200mm
Bed frame	Thickened and wide square tube welding bed (with horseshoe)
Repeatability	<0.05mm/1000mm
Design/ Dragon Gate	Aluminum plate T-slot countertop + PVC, Fanggang gantry
Run motor	G code, f/s command is compatible
Spindle power		Water-cooled power 2.2kw, 3.0kw, 5.5kW (optional)
Spindle speed	6000-24000R/min
Operating Voltage	220V50Hz/380V50Hz
Run command	G code, f/s command is com patible
Maximum space speed	15M-Min
Transfer method	axis screw + square rail X-axis rack+ square rail Y-axis rack+ square rai (Y-axis dual motor)

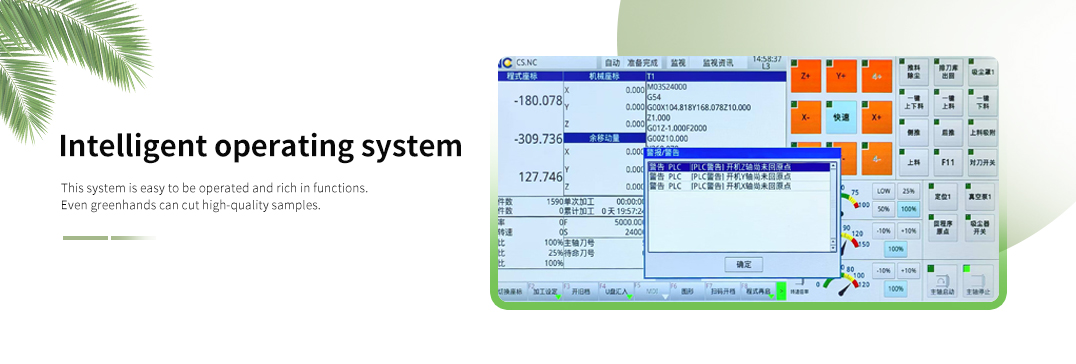

Control System	Macro system
Inverter	Southern Anhua inverter
Rail model	S20/25 square rail (optional)
Transmission system	Rail+ oblique rack
Z-axis transmission system	High precision ball screw
A fixed way	Plate
Dimensions	Diferent length 1200mm wide 1400mm high 1600mm
Total weight	About 4000 kg
Body color	Black red / blue white

Working desk size	600mm 900mm 200mm
Bed frame	Thickened and wide square tube welding bed (with horseshoe)
Repeatability	<0.05mm/1000mm
Design/ Dragon Gate	Aluminum plate T-slot countertop + PVC, Fanggang gantry
Run motor	Stepper motor (optional servo mixed dress
Spindle power	Water-cooled power 2.2kw, 3.0kw, 5.5kW (optional)
Spindle speed	6000-24000R/min
Operating Voltage	220V50Hz/380V50Hz
Run command	G code, f/s command is compatible
Maximum space speed	15M-Min
Transfer method	axis screw + square rail X-axis rack+ square rail Y-axis rack+ square rai (Y-axis dual motor)
Control System	Macro system
Inverter	Southern Anhua inverter
Rail model	S20/25 square rail (optional)
Transmission system	Rail+ oblique rack
Z-axis transmission system	High precision ball screw
A fixed way	Plate
Dimensions	Diferent length 1200mm wide 1400mm high 1600mm
Total weight	About 400 kg
Body color	Black red / blue white

Applicable industries

Longtai Laser is well-known as one of the largest and professional full-protective sheet fiber laser cutting machine manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you full-protective sheet fiber laser cutting machine at low price.

Haven’t you decided which configuration yet?

Don’t worry, we are there to advise you

> Ask our experts
